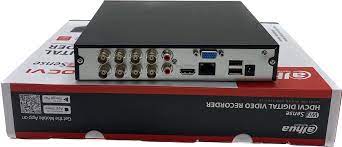

Dahua XVR1B04H-I 4 Channel Penta-brid 5M-N/1080p Cooper DVR

Tk0

Key Features Model: XVR1B04H-I H.265+/H.265 dual-stream video compression Supports Full-channel AI-Coding Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 6 channels IP camera inputs

categories

security

QTY


Specification

System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Audio and Video
IP Camera Input
4+2 each channel up to 6MP
Two-Way Talk
Reuse audio in/out, RCA
Display
Interface
1 HDMI ,1 VGA
Resolution
1920×1080, 1280×1024, 1280×720
Multi-Screen Display
When IP extension mode not enabled: 4CH: 1/4
When IP extension mode enabled: 4CH: 1/4/6
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression
H.265+/H.265/H.264+/H.264
Resolution
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main Stream: 4CH: the 1st channel 5M-N(1~10fps)
Sub stream: CIF/QCIF (1~15fps)
Bit Rate
32Kbps ~ 6144Kbps Per Channe
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Video Detection And Alarm
Trigger Event
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Playback And Backup
Sync Playback
4CH: 1/4
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Third Party Support
Third Party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface
1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Maximum User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Storage
Internal HDD
1 SATA Port, up to 6TB capacity
Auxiliary Interface
USB
2x USB 2.0
Power
Power Supply
DC12V/1.5A
Power Consumption
<10W
Component Environment
Operational Conditions
-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
Dimensions
Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
Net Weight
0.54kg

Description

Dahua XVR1B04H 4 Channel Penta-brid 5M-N/1080p Cooper DVR

Dahua XVR1B04H is a 4 Channel Penta-brid 5M-N/1080p Cooper series Digital Video Recorder.Cooper Series XVR. Designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs. It is ideal for a wide range of civil applications such as retail store, home protection and so on. Featuring high performance with attractive costs, the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance. Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras. The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient. The XVR supports up to 5MP HDCVI camera and 6MP IP camera input. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P. With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed. It is a typical technology being used in a variety of applications for searching or identification of individuals. This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful in certain times. It also has H.265+/H.265 dual-stream video compression which supports Full-channel AI-Coding. Along side it also supports HDCVI, AHD,TVI,CVBS,IP video inputs. This HDR can have a maximum of 6 channels with IP camera inputs.Dahua XVR1B04H 4 Channel Penta-brid 5M-N/1080p Cooper DVR offers 1 year of Warranty.
